Premium White LED Sign Modules - Channel Letter LEDs
Brighter than other LED modules you may have seen, our white LED Light Modules produce 60 lumens and can be use in a wide variety of lighting applications. Our LED Light Modules are powered with 12 VDC through a transformer. These LED modules perform very well in hostile environments such as temperature extremes. They are IP67 rated.
See How To Populate Channel Letters for help.
See our sign modules in action, click to enlarge
- LED: One 1.0 watt Neutral White smd type per module
- Luminous Intensity: 60 lumens
- View Angle: 120 Degrees
- Current Consumption: 330mA per three module section
- Weatherproofing: IP67 rated

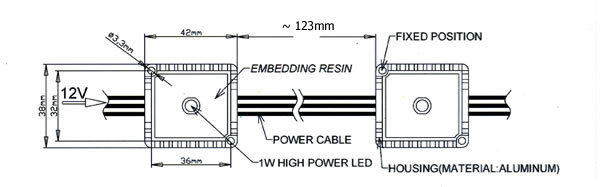

- Dimensions: 42mm L x 38 mm W x 12mm H or approximately 1.65" x 1.5" X 1/2" tall. Approx. 123mm (4.84") wire length between modules. Drawing 1 set of 36 modules measures 18' 11"
- Lumen Maintenance: 95% at 1000 hours
- CRI: 75
- Color Temp: 5000-6000K natural white
- Operating temperature -20° to +40 ° C (-40 ° F to +104 ° F)
- Installation: Mounts with pre-attached double sided 3M tape. There are also mounting holes on each module. Maximum of one box of 36 modules per home run to the transformer in order to avoid voltage drop.
- Field Adjustment: Can be cut on cut marks in 3 module segments
- Certifications: CE; RoHS; Our transformers are UL Listed.
- Warranty: One year when properly installed and powered.
We can still provide these if you have used them for another project and need more, but we will not stock these.
May we suggest our less expensive yet high performance modules on this page. You can also contact us for help.
Requires a transformer, not included TX 1A w/plug 800mA, powers 6 LED modules; $12.60 each
