4 SMD LED Square Sign Modules

Low Profile LED Lighting for Signs, Billboards, Channel Letters and Advertising Boards

Square LED Sign Modules

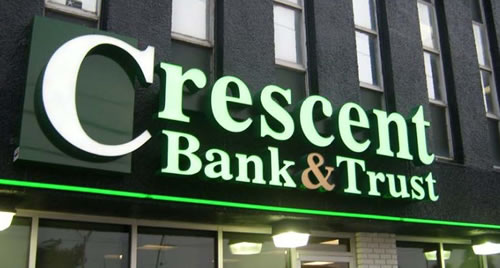

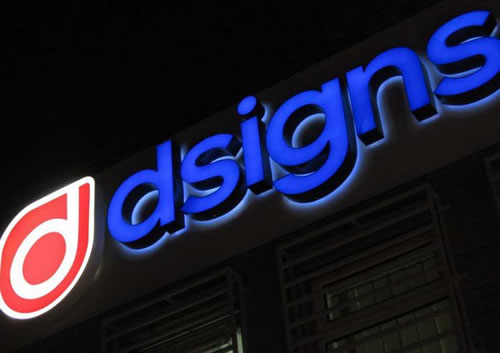

Replace energy consuming neon with bright, white LED modules. Installs easily with 3M double sided tape backing. Ideal for channel letters, reverse channel letters, lighting signs, billboards or advertising boards.

LED Sign modules can also be used for backlighting and many other LED lighting applications.

See How to Populate Channel Letters with LEDs for basic layout instructions.

Operating Voltage: 12VDC
IP Rating: IP65 for dry, damp or wet environment
LEDs: 4 120 degree SMD LEDs per module
CCT: 5500-6500K natural white
Lumen Output: 40 lm per module
Power Consumption: 0.96W per module (84mA)
Maximum Series: Wound Quantity: 20 pcs
Operating Temperature: -40C to 60C (-40F to 140F)
Lumen Maintenance: >95% @ 1,000 hours
Housing: PVC
Dimension: L36*W36*H6 mm/ 1.42" square x 0.24" high
Requires a regulated 12V DC transformer; not included
Dimmable with 12VDC dimmer
Warranty: 1 year when properly installed and powered

Yes, we have other sign modules to choose from including linear sign modules and RGB Color Changing LED Sign Modules.

Sign Module Index is here

Installation instructions and layout design help is here

We'll be glad to help you with your project. Please contact us if you need help or pricing on a larger order.

Rectangular LED sign modules are also in stock in RGB Color Changing. Available in 620-625 nM red, 470-475nM blue, 515-520nM green, 580-585nM yellow and 3300-3500K warm white by special order, 6-8 week lead time, 100 pc minimum order. . Contact us.

Square White LED Modules

White Square LED Sign Modules; Sample Set is a string of 10 modules. Also sold in 20 piece segments. Use Drop Down for Quantity Pricing.

Order your Power Supply

Requires a 12V DC regulated transformer, not included. TX 5A $32.90 powers up to 47 modules.

Yes, we have larger transformers and waterproof transformers. LED sign modules are dimmable if you wish.
