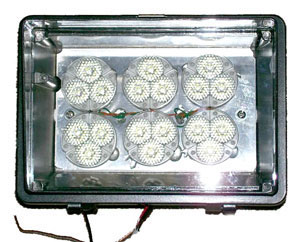

111111U SP 10° LED Spotlight - assembled in the USA
more info
|
 |
|
Specifications:
- LED Type: 18 each 1 watt White LEDs on Star Board
- Input Power: 11.8 - 28 Volts DC - Solar Ready; or you can run with a transformer. See below. Will also operate at 6 - 18 VAC RMS
- Current Consumption: 1.84 amps @ 12.6 volts; 1.02 amps @ 24.0 volts
- Light Output: 3000 Lumen/Square Foot; 3000 Foot Candles; 23,250 Lux
- Estimated Watt: 250 watt light output
- Color Temperature: 6000-6500K Daylight White
- Output Pattern: 10° Spot
- Environment: Indoor or Out door
- Working Temperature: Min -40°F - 100° F max. Will overheat if ambient temperature exceeds 100 degree F. Best for indoors, cold storage, freezers, ice house, refrigerators and cool temperature regions.
- Mounting: 1/2" Pipe thread with jam nut
- Light Coverage: 12 feet diameter from 12 feet high - 5 feet diameter from 6 feet away from a sign
- Warranty: One (1)Year
|
Enclosure:
- Finish: Chip and fade resistant poly powder coat
- Housing: Precision die cast aluminum, gray color
- Lens Gasket:. High temp tubular silicone
- Lens: Thermal tempered shock resistant glass. Optional poly carbonate lens
|
Spotlight 111111U SP 13.2-29 vdc or vac at $577.00 each
Measures 9"x7"x8" |
|
|
|
These lights are solar ready. If you wish, you can power them with a 12 or 24V transformer. Click here for our transformers. Check the current consumption above. Multiply that by the number of units you are going to hook to one transformer and select the transformer of adequate size for the job. These lights are also dimmable. Click here for our dimmers.
|
