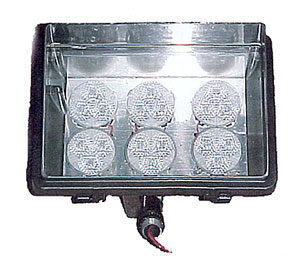

333333U SS 30° Semi-Spotlight - assembled in the USA
more info
|
 |
|
Specifications:
- LED Type: 18 each 1 watt White LEDs on Star Board
- Input Power: 11.8 - 29 Volts DC - Solar Ready; or you can run with a transformer. See below. Will also operate at 6 - 18 VAC RMS
- Current Consumption: 1.84 amps @ 12.6 volts; 1.02 amps @ 24.0 volts
- Light Output: 2180 Lumen/Square Foot; 2180 Foot Candles; 23,250 Lux
- Estimated Watt: 150 watt light output
- Color Temperature: 6000-6500K Daylight White
- Output Pattern: 30° Semi-Spot
- Environment: Indoor or Out door
- Working Temperature: Min -40°F - 100° F max. Will overheat if ambient temperature exceeds 100 degree F. Best for indoors, cold storage, freezers, ice house, refrigerators and cool temperature regions.
- Mounting: 1/2" Pipe thread with jam nut
- Light Coverage: 12 feet diameter from 12 feet high - 5 feet diameter from 6 feet away from a sign
- Warranty: One (1)Year Residential Use; 120 days Commercial Use
|
Enclosure:
- Finish: Chip and fade resistant poly powder coat
- Housing: Precision die cast aluminum, gray color
- Lens Gasket:. High temp tubular silicone
- Lens: Thermal tempered shock resistant glass. Optional poly carbonate lens
|
Semi-Spotlight 333333U SS 13.2-29 vdc at $577.00 each
Measures 9"x7"x8" |
|
These lights are solar ready. If you wish, you can power them with a 12 or 24V transformer. Click here for our transformers. Check the current consumption above. Multiply that by the number of units you are going to hook to one transformer and select the transformer of adequate size for the job. These lights are also dimmable. Click here for our dimmers.
|
Click here to order your controls
