24 VDC Modular LED Strip Lighting with Easy to Connect Plug In Connectors take the guesswork out of your project
Lengths from only 9 1/8" up to 44 3/8" make custom cabinet, kitchen, and cove lighting tasks a breeze!
Modular LED Strip Lighting - LED Under Cabinet Lighting, 24VDC input
So easy to install, these LED strip lights simply plug into each other. Low profile, low energy consumption, seven lengths available to customize your installation.
Great for under cabinet lighting, under counter lighting, cove lighting, display cases, cabinets, signs, edge lighting, residential closet, kitchen and bath lighting.
Contact us for help to customize your installation. We also have dimmable 120VAC input linkable strip systems.

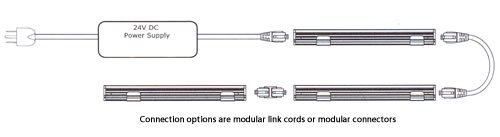

Modular Link Cables for connecting bars to one another
Couplers for connecting bars side by side
Dimensions: 1 1/8" W x 3/4" high
Completely linkable for continuous lighting up to 150 W
Operating voltage: 24VDC with a 24VDC transformer (see below)
CCT: Available in 3000K warm white and 5000K daylight white (+ or - 300K)
Lengths 9", 12", 21", 29", 34", and 45"
Lumens Warm white: 448, 538, 1120, 1568, 1792, 2040, 2464
Lumens Cool white: 431, 517, 1078, 1510, 1725, 2156, 2372
Link Cords: Available in 6", 12", 24", 36" and 72" lengths. With this flexibility, no cutting/splicing should be needed.
Package includes standard mounting brackets and screws. Swivel brackets also available.
LED type: High power 1W 110 degree view angle LEDs (either Cree or Phillips)
CRI: Warm white 80; Cool white 70
Power Requirement: 24VDC Power supply required and is sold separately. This 60W power supply has a max capacity of 48W. Max watts per run 150W. Power cord about 5' long.
Power Consumption: 9" 5W; 12" 6W; 21 3/4" 10W 0; 29" 15W; 34" 16W 0; 39" 20W; 45" 22W.
Housing: Machine cut aluminum heat dissipater; satin anodized finished
Operating temperature: 4 F to 104F (-20C to -40C)
Humidity range: 0 to 95% non condensing humidity
Lumen maintenance: 70% of original output at 50,000 hours
Warranty 3 years Not dimmable
