Luxeon LEDs


Data Sheets, Application Briefs, Information

Note: Luxeon Warm White

Description:
Lumileds Luxeon warm white LED is the first generally available low CCT and high CRI warm white solid-state light source. This new Luxeon LED opens the door for significantly greater use of solid-state illumination in interior and task lighting applications by replicating the soothing, warm feel typically associated with incandescent and halogen lamps.

Luxeon warm white has a source size identical to other Luxeon products.

For complete specifications please refer to the Luxeon Warm White Data Sheet here.

Features:
  • 90 CRI (High CRI)
  • 3200K CCT (Low CCT)
  • Very Long Operating Life (up to100k hours)
  • Batwing Radiation Pattern
  • Low voltage DC operated
  • More Energy Efficient than Incandescent and most Halogen lamps


  • Cool beam, safe to the touch
  • Instant light (less than 100 ns)
  • Fully dimmable
  • No UV
  • Superior ESD protection


Data Sheets

DS25 1Watt Emitter Data Sheet
DS23 1Watt Star Data Sheet
DS45 3 Watt Emitter Data Sheet
DS46 3 Watt Star data sheet
DS30 5 Watt Star Data Sheet
DS34 5 Watt Emitter Data Sheet
DS40 5Watt Portable V Star / Emitter Data Sheet



Warm White Emitter and Star Data Sheet
Medical/Dental DS35 5 Watt Data Sheet
Thermal Design Guide AB05
Thermal Design Guide - 5 Watt
Electrical Drivers / Information
Luxeon Lumen Maintenance
Dynamic Color Control




Luxeon Side Emitter		 Luxeon Terminals

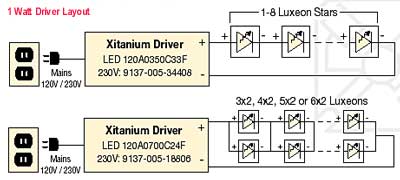

Luxeon 1W Driver Layout

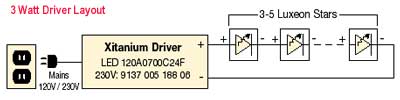

Luxeon 3 W driver layout

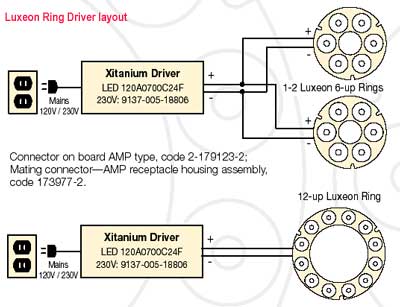

Luxeon Ring Driver Layout
