F9U LED Light Series - assembled in the USA

made in the USA LED blood tracker Flashlight
more info

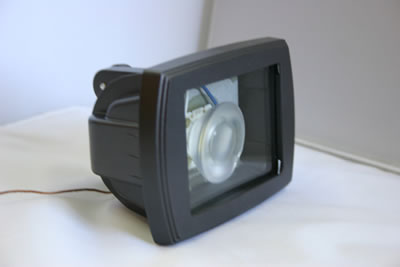

F9U LED Light Series

This new series of LED Spotlights and Floodlights has improved light output with no 3D effect. The no flicker driver produces a smooth light with no strobe effect. Available in a 30 degree spot, 60 degree flood or 110 degree full flood.


Specifications:
  • LED Type: 9 high power emitters in one die
  • Input Power: 11.8 - 29 Volts DC or AC - Solar Ready; or you can run with a transformer. See below. Will also operate at 6 - 18 VAC RMS
  • Current Consumption: 700mA @ 12.0 vdc; 350mA @ 24.0vdc
  • Color Temperature: 5500K Cool White
  • Light Output: 105 to 975 FC. See data sheet.
  • Estimated Watt: 500W (30 degree); 250W (60 degree); 150W (110 degree)
  • Output Pattern: 30 degree; 60 degree; 110 degree
  • Environment: Indoor or Outdoor
  • Working Temperature: Min -40° F; Max +130° F
  • Dimensions: 5 1/2" W x 4" H x 3 3/4" D
  • Weight: 1 lb
  • Mounting: 1/2" Pipe thread with jam nut
  • Warranty: One (1)Year

    • Enclosure:
  • Finish: Chip and fade resistant poly powder coat
  • Housing: Precision die cast aluminum
  • Housing Color: Bronze Standard; White special order. Please email for help.
  • Lens Gasket:. High temp tubular silicone
  • Lens: Thermal tempered shock resistant glass. Optional poly carbonate lens
    		•


    On Sale - Regular Price $295.00 - Sale Price $190.00
    F96U 60 degree Floodlight for signs and area lighting. 125 FC. See size guide.
    Sale Price $190.00 ea
    Lexan Vandal Resistant Lens
    $9.95 ea

    These lights are solar ready. If you wish, you can power them with a 12 or 24V transformer. Click here for our transformers. Check the current consumption above. Multiply that by the number of units you are going to hook to one transformer and select the transformer of adequate size for the job. These lights are also dimmable. Click here for our dimmers.
