LED - L.E.D. - LEDs = Light Emitting Diodes

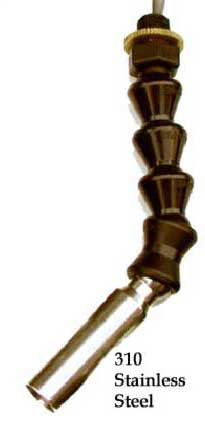

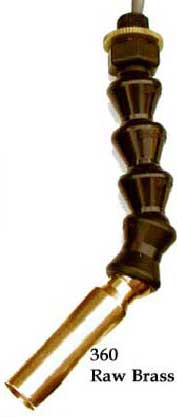

The LED Tri-Cluster is a new line of submersible/waterproofed interior and exterior light fixtures utilizing three (3) Nichia 3mm, 70 degree, 780mcd white LEDs for an even, wide light distribution. Current consumption is still 20mA per cluster at 12vdc. Each cluster is fully potted for water proof applications, although it can be used just about anwhere. For a softer, wider lighting, the cluster head can be filled with the #31 Silicon Diffuser lens, and even colored to provide mood or accent lighting. Case or body mount is 316 Stainless Steel or raw brass, with the flexible stalk on models #350 and #360 only.

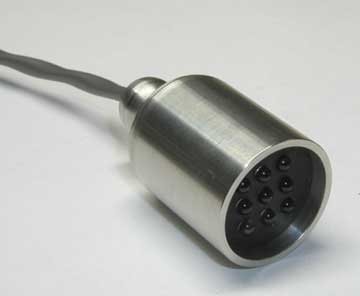

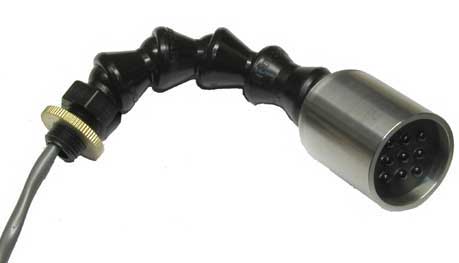

This new line now includes the 9 LED Cluster, a 9 LED version set into stainless steel housings, with or without the stalk. The 9 LED Cluster runs at 60mA - 13vdc, three times the consumption for three times the brightness with the same 3mm LED as used in the Tri-Clusters. The 9 LED Clusters are also waterproof fixtures and are submersible to 20 feet.

The 3 LED Cluster and the 9 LED Cluster can be used anywhere a small low-level light is desired, or in combinations to provide more light but without overlighting or overpowering an area or object; under water, near water, pools, water fountains, water falls, ponds; inside or outside, buildings; cabinetry and furniture; boats, yachts, planes, cars, RVs, trailers, ATVs, and trucks; decks, patios, poolside, porches, lanais, entry ways; set them in rocks, walls, sidewalks, posts, gates, driveways, stairwells/steps. Use your imagination to build landscape lights, sconces, interior accent lighting, gate post lights, mood lighting. Superb light source for industrial and commercial equipment, and OEM manufacturers. The applications are endless!

Click here for beam projection notes.

# 31 Silicon Diffusing Lens: This lens snaps into the LED cavity of any Tri-Cluster. The beam of light is converted from the standard 70 degrees to essentially 180 degrees. There is some light loss and the extreme wide angle flood can't penetrate the distance of the non diffused fixture. For path lighting and foreground fill, the lens is ideal. Any Tri-Cluster in service can be quickly modified to and from a wide angle flood with this lens

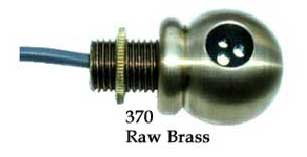

The LED Tri-Cluster and 9 LED Clusters are available in a variety of configurations with optional parts/accessories. The images below show what is currently available.

Click any image for a closeup
