White and Colored LED Strips - Parts and Instructions

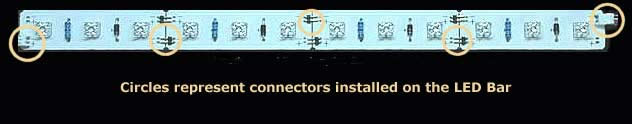

LED Strips can be connected to each other. They can also be broken into four pieces. The circles above highlight the areas where the connectors are. For ease of installation, we provide the following parts:
This is a Strip to Strip connector. You can use these to join one Strip to others, or sections of a Strip you have snapped off, to each other. These simply snap into the matching connector on the Strip. The wire is 6" long. If you need more length, simply cut and splice the two wires.
This is a Power Supply Jumper. You can use this to connect your Strip to your power supply wires or terminals. The connector end simply snaps into the bar. The wire is 6" long. If you need more length, simply cut and splice.
This is Strip Track. Two different views are shown at the left. The Strip simply slides into the track. You can then screw or glue the track without risking damage to the Strip itself. Two per Strip are helpful for stability.
You can plug your light Strip right into household wiring by using an AC-DC transformer. The Power Supply Jumper will make it easy for you to connect the Strip to the transformer leads. First, decide how many LED Strips you will use. Then click here for our controls page and select the transformer right for the job. There are 12 LEDs per board.
