LED BA15D and BA15S Base Elevator Lamps

Energy efficient replacements for 12V GBF or 12V 1383 Elevator Lamps

2W LED Elevator Lamp replaces GBF and has a BA15D base

3W LED Elevator Lamp replaces 1383 and has a BA15S base

Energy saving solution for elevators and 12V display lighting, the 2 and 3W LED Elevator Lamps

This specialty LED lamp is special order only and is application specific. However, the innovative design virtually eliminates heat and may be of interest to those who would wish to experiment.

Order your sample below or contact us for help. Lead time is typically less than a week.

Direct replacement for 20W incandescent lamp, 120 lumen output

Uniform illuminance pattern

High efficiency and long life at 30,000 hours

Environmentally friendly, no UV or IR radiation

Virtually heat free

Light weight

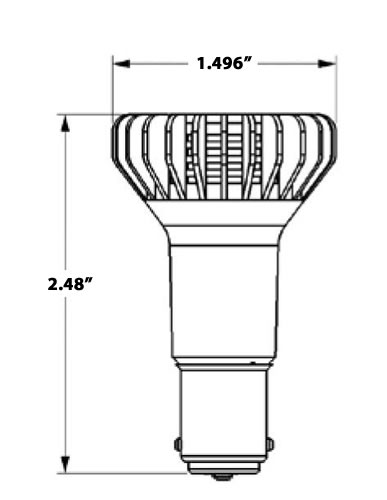

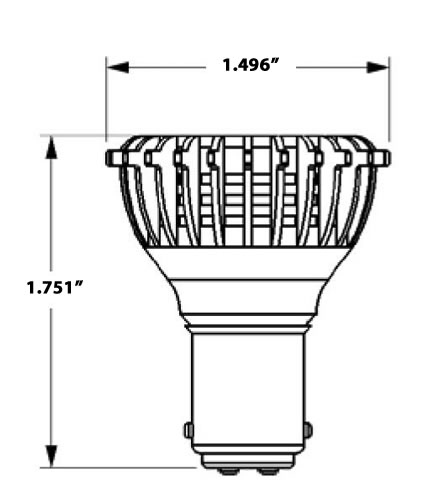

Dimensions: Diagram for 3W; Diagram for 2W

Base type: BA15S (3W) and BA15D (2W), 12V input

Power consumption: 2W and 3W respectively

CCT 3000K

CRI: 80

Not dimmable and not for use with dimmers.

Use a magnetic transformer. Compatibility with electronic transformers minimum load requirement must be verified.

3 year limited warranty: LED bulb’s warranty and product life statements are based on operating the LED lamp in environments with an ambient temperature of 25 degrees Celsius / 77 degrees Fahrenheit and are warranted for a period of 3 years, based on 3 hours of use per day – unless otherwise noted on the products packaging.

Order LED Elevator Lamps

Select 2W or 3W; both are 3000K

$19.95 each

Our LED application specialists are here to he you with your project. Please contact us for help.
