Yellow LED SPECIFICATIONS
click to enlargeToshiba TLYH180P T-1 3/4 InGaAIP
High intensity Yellow Light (590nm) Emission
InGaAIP Technology

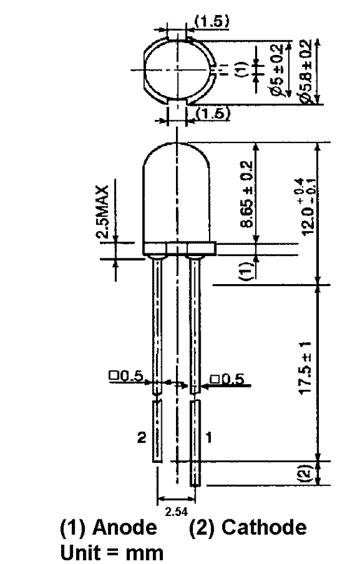

T-1 3/4 5 mm package
Water clear lens
Narrow Radiation Pattern
Maximum Ratings (Ta = 25° C)
| Characteristic |
Symbol
|
Rating
|
Unit
|
| Forward Current |
 |
50
|
mA
|
| Reverse Voltage |
 |
4
|
V
|
| Power Dissipation |
 |
125
|
mW
|
| Operating Temperature |
 |
-30
~ 85
|
°
C
|
| Storage Temperature |
 |
-40
~ 120
|
°
C
|
Opto-Electrical Characteristics (Ta = 25° C)
|
Characteristic
|
Symbol
|
Test
Condition
|
Min
|
Typ
|
Max
|
Unit
|
|
Forward
Voltage
|
 |
IF
= 20mA
|
--
|
2.1
|
2.5
|
V
|
|
Reverse
Current
|
 |
VR
= 4V
|
--
|
--
|
50
|
mA
|
|
Luminous
Intensity
|
 |
IF
= 20 mA
|
2720
|
8000
|
--
|
mcd
|
|
Viewing
Angle
|
20
1/2
|
--
|
--
|
8
|
--
|
°
|
|
Peak
Wavelength
|
 |
IF
= 20 mA
|
--
|
590
|
--
|
nm
|
|
Dominant
Wavelength
|
 |
IF
= 20 mA
|
--
|
587
|
--
|
nm
|
|
Spectral
Line Half Width
|
 |
IF
= 20 mA
|
--
|
13
|
--
|
nm
|
