LED Flood lights - LED Billboard and Sign Lights

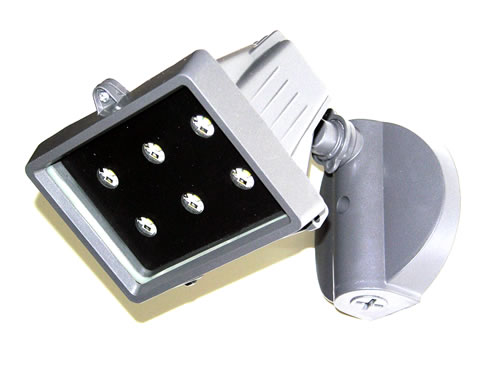

3 and 6 LED Vandal Resistant LED Flood lights, LED Billboard and LED Sign Lights - Mid sized LED Flood lights put out 1200 to 2340 lumens.

See LED Billboard and Sign Lighting Notes.

This LED flood light is great for lighting smaller billboards and signs, home security, overhead and down lighting, warehouses, engine rooms, alleys, decks, forklifts and other equipment. Use this LED Flood light as a driveway light or a back yard security light.

It's great for solar or wind systems. Built to handle 32V spikes for up to 3 minutes with no damage. Can easily be powered with a transformer as well.

General Specifications

• 3 or 6 Cree multi chip XML series T8 5400K 400 lm per LED; 150 deg light spread
• On board PWM duty 20% extends LED life
• Standard 4" box mount, conduit flush mount to wall or straight to 1/2" pipe thread
• Input voltage: 10-15 VAC; 12-16VDC with short circuit protection. Handles 32V spikes for up to 3 minutes without damage
• Dimensions: 5.5" L x 4" W x 4" high
• Body material: cast aluminum alloy;dark gray finish
• 0.25" tempered glass lens for the finest clarity.
• Silicone gasket and sealant seals the glass in place.
• CCT: 5400K
• Operating temperature: -30C-60C (-25F-140F)

• IP Rating: IP65
• Power Consumption: 3 LED: 800mA; 6 LED 1500mA
• Light Output: 3 LED; 1200 lumens; 95W incandescent replacement; 6 LED 2340 lumens; 170W incandescent replacement

Special:

• Can be ordered in 24 VDC, min quantity 12 pcs
• Can be special ordered with white finish. Contact us for minimums.
• RoHS compliant. No Pb or Hg
• Warranty: 3 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
• Installation Instructions
• LED Billboard Lighting tips
