The LED Light




Product Line: Light Emitting Diodes; LED Clusters and Arrays



Osram-Sylvania Golden Dragon Light Bar





Golden Dragon 3 LED Light Bars come with identified positive and negative wire leads for easy installation or connection to an existing 12v DC system (controlled voltage), or through the use of a regulated 120vac to 12v DC Transformer 2. No external driver required means ease of installation - simply connect to your power supply. Equal or better light color, light brightness and light volume of the Luxeon LED. Aluminum bar is a heat sink but additional heat sink required prior to installation.

The Golden Dragon Light Bars are connectable. Power is supplied with larger transformers that meet the mA capacity required by the number of Bars, or a 12v DC battery source. These are the easiest large smd LED light bars to work with at this time. The Golden Dragon Light Bar approximates a 40 watt incandescent light.

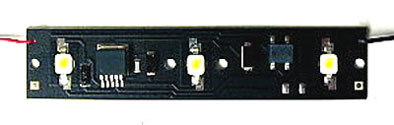

lucerelightbar

lucere 3 led Bar

Applications:

  • Air Plane Interiors and Exteriors
  • Boats, Yachts, RVs
  • Emergency, S&R;, medical vehicles
  • Heavy Equipment Cabs/compartments
  • OEM Manufacturers
    		•
  • Backlighting
  • Edge Lighting
  • Light Fixtures
  • Portable Lights

    • This item is no longer stocked

    STATS:


    Product Description: Three 1 watt White LEDs with an integrated current control driver; 12vdc input.

    Specifications:
  • Input Voltage - 12vdc
  • Operating Voltage - 11.6 to 13.0vdc
  • Maximum Voltage - 20vdc. (Note 1 - additional heat sink required at this voltage.)
  • Heat Sinking: Additional heat sink required when connecting two or more in parallel
  • Reverse Polarity Input Voltage: 20vdc. (Note 2 - Polarity must be observed. RED=+/Black= --)
  • Current Requirement - 500mA
  • Power Consumption - 4.8 watts. (Note 3 - Calculated at 12vdc input voltage and 400mA input current.)
  • Luminous Flux - 78 lumens
  • Drive Current - 350mA
  • Color Temp - 6500k white
  • Colors: White
  • Warm white, blue, green, amber and red available soon. Email stating color and quantity you need.
  • Radiation Pattern - 120 degrees
  • Rated Lifetime - 50,000 Hours at Tj=25C. (Note 4. - Tj= LED junction temperature)
  • Operating Temp - -40C to +25C
  • Storage Temp - -40C to +100C
  • Dimensions - 1.0" x 4.75"
  • Mounting Holes - 4 at 1/8" dia
  • Lead Wires: 10" long. Can be removed to have your leads soldered directly to the bar.
