RGB Connection Instructions - Be certain to read and follow!

Be forewarned that if you return strips and/or wires to us which are damaged because you have attempted to force these connectors together incorrectly, credit will *not* be issued.

Also be advised that these connectors will likely NOT fit RGB strips you bought elsewhere. Purchased alone, they are NOT Returnable!

Please note that there is only one way to connect these strips. There is a "top side" and a "back side" for these wires. The strips will *not* light if you do not follow instructions precisely.

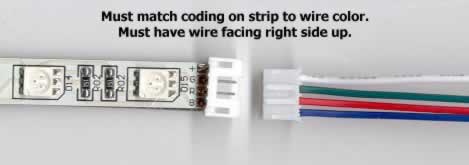

Look closely at the image of the LED Strip. You will see markings - +, G, R, and B at only one end of each strip.

You *must* match the connector to the strip so that the white white connects to +, the green wire to G, the red wire to R and the blue wire to B.

Then, you snip off the plastic connector on the other end of the wire set. Connect those bare wire leads to the controller, also following the color coding.

The other end of the strip has no markings on it. If you are going to connect another strip to the chain, here's what you do: Take a new wire. Connect it to the new strip as above, making sure you have matched the +, G, R, and B on the strip to the wire. Then plug the other end of the wire into the open white connector on the first strip.

Whenever you are adding another strip, make sure that you plug a new wire into the strip following the instructions above and you will encounter no difficulty with operating these strips.

If you require any further clarification of these instructions, email to [email protected]
