LED Sign Lighting - Linear LED Sign Modules

3 SMD White LED Linear LED Sign Modules

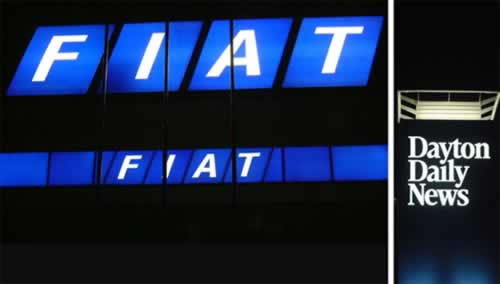

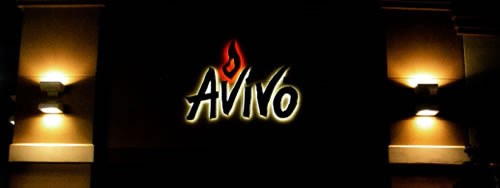

for narrow channel letters or other outdoor LED lighting applications.

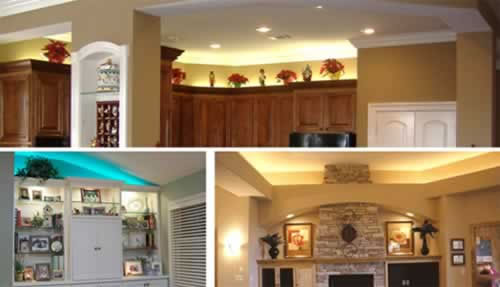

Replace neon and high energy consumption incandescent light sources. Indoors our outdoors; anywhere you need to light a narrow space with LEDs.

In stock in natural white. Warm white, red, blue, green yellow available by special order.

See How to Populate Channel Letters for help with your project

• LEDs: 3 SMD 120 degree view angle 5500-6500K natural White LEDs
• Input Voltage: 12 VDC
• Lumens: 14 lumens per LED, 42 lumens per module
• Lumen Maintenance: 95% @ 1,000 hours
• Power Consumption: 0.72W; 66mA per module
• Maximum Series: 20 pcs
• Dimension: 78 mm L x 15 W x 5 H (3.07" x 0.59" x 0.197")
• IP Rating: IP65
• String of 10 modules is approximately 5' long. There is approximately 3.5 inches of wire between modules

• Easy installation with 3M double-sided tape
• Low heat production
• Dimmable: Yes
• Materials: PVC Housing
• Stock Color: Natural White
• Other Available Colors: Red (619-620 nM), Amber (584-595 nM), Blue (463-475 nM), Green (512-528 nM)
• 6-8 week lead time on solid colors, 100 pc minimum order. Contact Us
• Warranty: 1 year
• In stock in RGB Color Changing. You can use these to produce a single solid color as well as have color patterns

Linear LED Modules, White Sample Set, 10 pcs, 660mA; Full tray, 20 pcs, 1320mA

Transformer needed, not included TX 1A w/plug, 800mA, powers 10 linear LED modules; $12.60
