AcryLite LED Strips

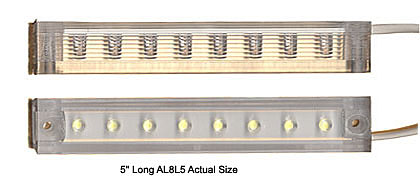

[ 3 sided, formed ribbed Acrylic channel with a led array set into it from the bottom. ]

Acrylite LED strips were made with 5mm LEDs.  We now offer a full line of LED under cabinet lighting with high powr LEDs

led strip lights

AcryLite LED Strips are u-shaped ribbed acrylic channels which have a slightly frosted clear face and ribbed sides. The LED strip is inserted from the bottom and covered with a plastic plate. The LED does not protrude from the top, thus allowing for improved weatherproofing, wider and smoother light dispersion.

Basically for under-cabinet lighting, for cove lighting, for shelf and cabinet interior lighting, for edge lighting, you can also install the AcryLite LED Strips in boats, planes, semi-tractors, as step lights on decks, in display counters, wherever your imagination takes you.

LEDs are the wide view angle 40-50 Degree 7000mcd white LEDs, with LED spacing at 1/2" apart.

Use double sided self adhesive tapes to secure the centers of 36 inch or longer length AcryLite LED Strips.

Electrical Characteristics:


  • Input Voltage Source Regulated 12vdc
  • Input Voltage: 12.0vdc
  • Current Consumption: 120mA per 12", 24 LED section/length
  • Power Consumption: 1.5watts per 12" length
  • Operating Temp: -40C to +95C
  • Luminous Intensity: 16.2 CD / 35 watts / 510 Lumen per 12" length.



    AcryLite - AL48L25
    Each strip contains 48 ea, 50° White LEDs - 35 watt light output - 240mA consumption @12.0vdc
    Measures 24 3/4" x 7/8" x 7/8" Thick
    AcryLite - AL72L37
    Each strip contains 72 ea, 50° White LEDs - 50 watt light output - 360mA consumption @12.0vdc
    Measures 36 3/4" x 7/8" x 7/8" Thick
