1206 LuxLED Under Cabinet Lights

The 1206 LuxLED Under Cabinet Lights were made with Luxeon LEDs which have been updated.

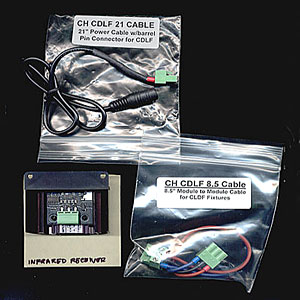

LED Light strips IR Receiver

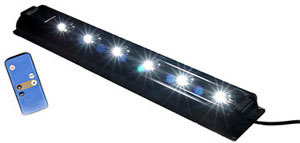

The 1206 LuxLED Under Cabinet Light has 6 each 1 watt Luxeon LEDs in a slick and sleek black aluminum enclosure. A remote for on/off and bright/dim is available. The fixture can be operated without the remote, through a standard 12v on/off switch installed inline on the power cord, or through a wall switch/wall switched outlet. You will have to disconnect the IR Cable to use an external on/off switch. One year warranty on defects.

The 1206 LuxLED Under Cabinet Light does not include the components to power it or to have it remotely controlled. All items to power, connect and operate the 1206 LuxLED Under Cabinet Light are to be purchased separately to fit your installation requirement.

Click here for installation instructions.


Applications:

  • Excellent fixture for kitchen under cabinet lighting,
  • as shelf, bookcase and storage room lighting,
  • around the home and offices as accent/ambient lighting,
  • in cabinets, entertainment centers and hutches.
  • in bathrooms, closets, work benches, hobby room
  • in museum, jewelry and hard good display cases
  • Note: always install more LED lighting than you need. Dim to desired light level

    • Specifications:

  • 12-24vdc 750 mA power input
  • Consumption: 8.4 watts/700mA at 12 vdc
  • LEDs: 6 pieces Luxeon 1 watt 110° cool white
  • Color temp: 6000k Cool White - 3000k Warm White
  • Fixture output: 270 lumens/18 watt out put
  • Body Material: Powder coated Aluminum, black
  • Diffuser: Clear glass
  • Operating temperature: -40 to +80°
  • Expected Life: 50,000 hours
  • Size: 13 3/16 " x 2 3/8" x 1" thick
  • Remote: 3 3/8" x 1 9/16' x 1/4" thick - Controls 5 fixtures
  • Warranty: One year for defective LED only.
    		•

    CDLF-1206CW Cool White or Warm White
    Fixture Only
    CDLF-1206RC Remote Control and Receiver
    CDLF-1206PS 100-240vac
    4.0amp
    50 Watt Power Supply
    CDLF-1206 21" Power Cable
    w/Barrel Pin Connector
    CDLF-1206 8.5" Module to Module
    Cable
